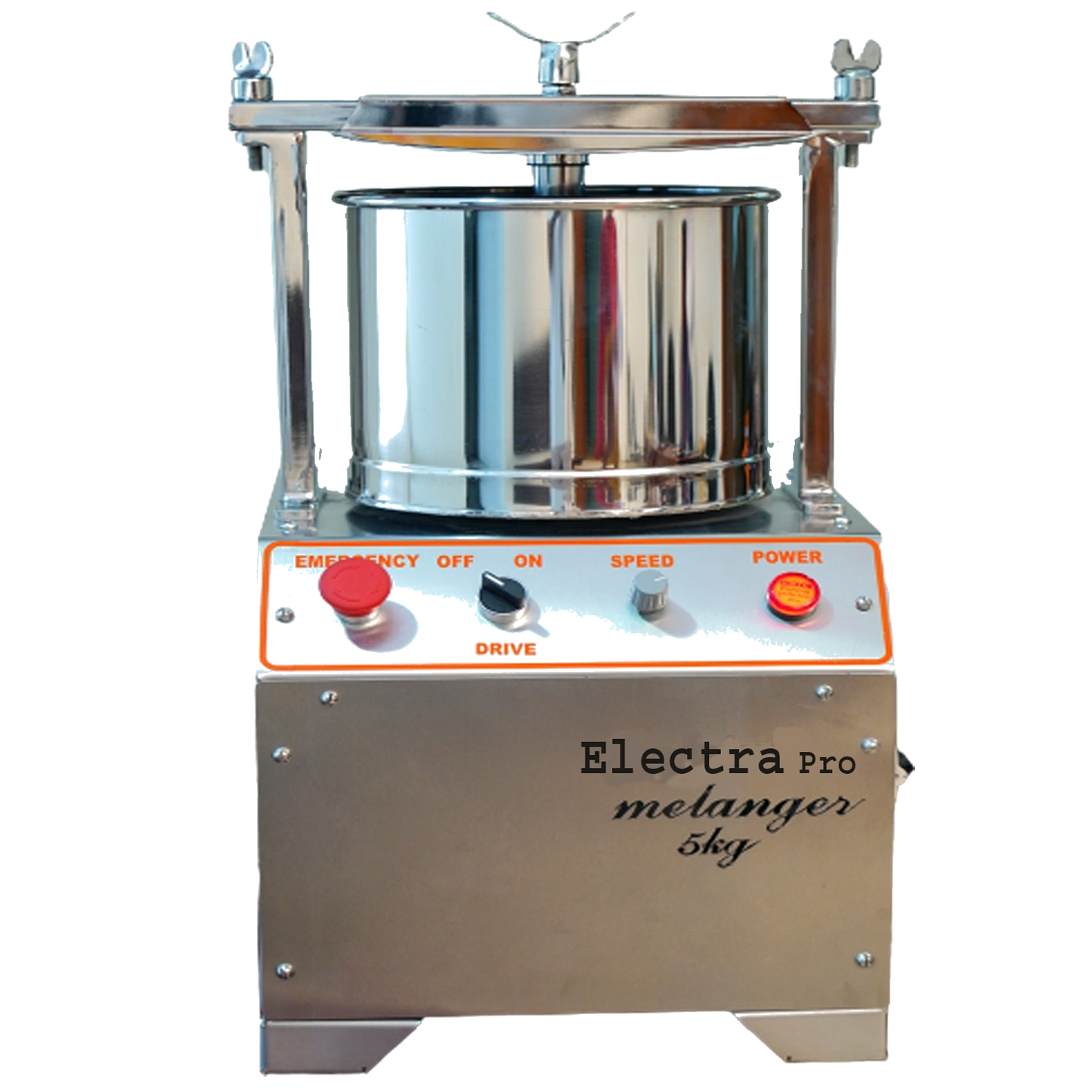

Cocoa Mel 5Kg with Speed Controller

Available in 230 V / 415 V
Available in Single / Three Phase

Supporting Stand Stainless steel SS 304 grade body
Empty Drum Volume Exhaust System for heat extraction
Heavy Duty Gear Box with Speed Controller
Adjustable Controller (to control from 0 RPM to 140 RPM)

Heavy Duty motor support 80 Hrs.
Continuous Grinding
SS 304 Double scrapper arm for efficient grinding
Powerful 0.5 HP, CE certified motor
Empty Full Drum Volume - Diameter - 10"  & Depth - 8"
0.5 HP motor with speed controller unit
Built in MCB

Chocolate Melanger
Cocoa nib grinder
Cocoa butter grinder
Nut Butter Grinder

DETAILS - Cocoa 5 KG CHOCOLATE MELANGER

The ideal machine for cocoa process and spread process and different utile grinding needs.

This Cocoa Chocolate Melanger can grind up to 5 kg of cocoa bins. Cleaning is a breeze, simply pour water, run the melanger for a couple of seconds and pour out the water. It almost cleans itself. Solid 100% stainless-steel body provides class, strength and durability. In addition, this melanger has all the options that make it stand out like powerful motor, gear drive, exhaust, black granite stone for long life and fine quality internal and external mechanism.

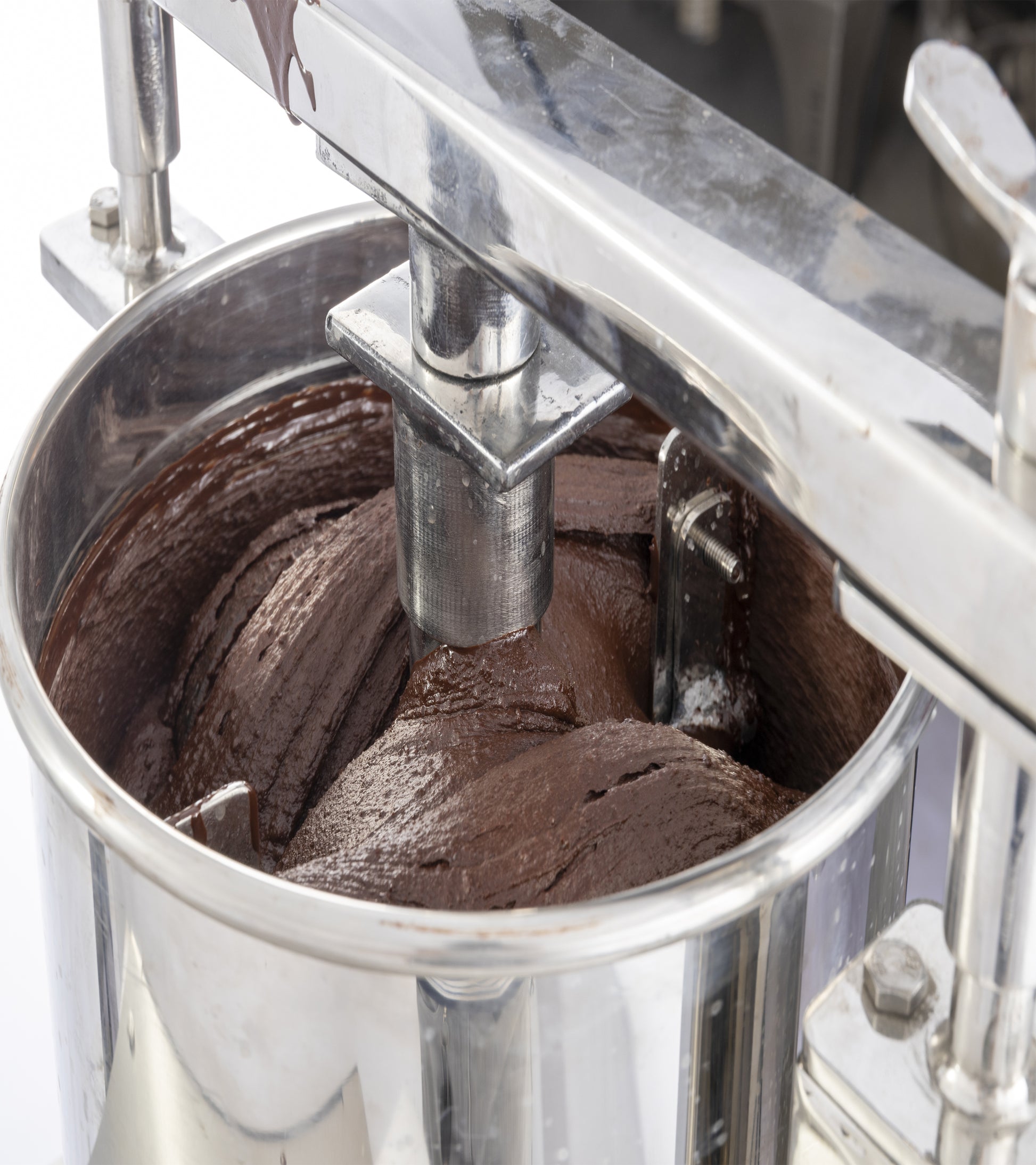

Double granite roller stones with double scrapper that rotate over a granite base. This creates quick tremendous shear that reduces the cocoa nibs to fine chocolate liquor and nuts into paste with a particle size of the order of lesser than fifteen microns.

Speed controller and control panel is provided as Standard with the unit, and comes with built in electrical MCB protection. This unit helps you to control the machine speed for various process and adjust the quantity of ingredients. This is noticeably helpful for you to differentiate your method from others, and make your recipe and processing unique to yourself. This machine comes with extra feature with timer which time can set for grinding

This wonderful stone melanger grinder is that the excellent companion to your endeavor. We have made several key enhancements to the grinder to make it perfect for Chocolate, nut butters, Mexican masa, cosmetics and other food processing. Our stone melangers can be used to make Marcepan from almond, Mesa from corn, coconut paste, Gianduja from hazel nuts, Pistachio and cashew butters, spread from bean seeds, flax seeds paste, Sphagnum moss for facials, Hummus from boiled chick peas, rice batter from rice, Quinoa and lots of Associate in Nursing different grinding application.

Our Cocoa Melanger 5 is a US-made, custom-built, all-Stainless Steel, tilting refiner that is plug and play ready. It has a maximum capacity of 5 kgs per batch. This professional, space-efficient model is a low-impact refiner for making fine chocolate, nut and seed butters from scratch. Low-impact refining allows for the maximum retention of nutritional value while at the same time preserves the shelf-life of a product.

The Cocoa Melanger 5 features high-quality, all-natural granite stones that refine particle size down to less than 20 microns. This space-efficient machine creates great shear, enabling a faster working time. In addition, the processing efficiency allows for maximum retention of the beans’ inherent qualities, therefore honoring their true potential to express involving the use of (fine flavor) profiles.

The Cocoa Melanger 5’s high-efficiency, continuous duty motor is engineered specifically to run 24/7 days year-round without the risk of overheating. No external cooling fans are needed. The machine can be safely operated for long refining times at varying speeds due to a unique motor design. The variable frequency drive system saves electricity and runs the machine efficiently. This system meets or exceeds the latest international energy efficiency standards.

The machine can be operated by a single person. Door-to-door shipping worldwide.

FEATURES Cocoa 5 KG CHOCOLATE MELANGER

• Long, trouble free operation with GEAR box and Motor directly mounted.
• High grade rust proof Stainless steel drum with food grade plastic components.
• No Plastic components in contact with food grade stainless Steel hub as a standard.
• Solid and heavy stainless steel frame
• Motor does not get overheated even under long and heavy use
• Real and naturally occurring Black Granite Stone is used to prevent chipping or thinning and long life. No artificial stones.
• No need to buy any add on and attachments - all are included
• Multipurpose machine that can be used with various food ingredients
• Speed controller drive made by the world leader and CE & UL certified
• Ergonomic design
• Machine can be operated without the lid on if necessary. Lid can be removed while running.
• Detachable Drum and Cylindrical Granite Roller Stones assembly can removed for easy cleaning
• Spring loaded adjustable load system for efficient grinding and control
• We have readily available spare parts that can ship worldwide and give you peace of mind.

SPECIFICATIONS OF Cocoa 5 KG CHOCOLATE MELANGER

• SKU : CMC005
• Capacity : 5 KG.

• Motor in HP : 0.5 HP.
• Voltage Availability : 230V/415V
• Motor Type : Stark.
• Inverter Type : Siemens.
• Drum Size is Diameter - 10" & Depth - 8".
• Gear Box is available.
• Motor Speed : 140 RPM.
• Speed Controller is available.
• Weight is Approximate - 45 Kg.

DELIVERY - Cocoa 5 KG CHOCOLATE MELANGER

• Cocoa 5 KG is home delivered via Air Cargo only.

• Delivery time is 7-10 days.

COST INCLUDES - SPECIAL NOTES

• The advertised is DAP price. Cost + insurance + Freight Charges + Door Delivery

• Import Duty , local tax, clearance is paid / taken care by customers.
